Embedding Semantic Risk into Distance Fields and CBFs for Online Monocular Safe Control

Dawei Zhang*1, Nuo Chen*3, Shuo Liu2, Roberto Tron1, Zhiwen Fan3
1Boston University, Division of Systems Engineering 2Boston University, Department of Mechanical Engineering
3Texas A&M University, Department of Electrical and Computer Engineering
* equal contribution
Paper Cite Code

Online semantic-aware safe control from monocular RGB video.

Abstract

We propose an online monocular perception-to-control framework that embeds semantic risk into the distance field used by Control Barrier Function (CBF)-based safe navigation and teleoperation. Many perception-based safety filters assign the same distance-based safety margin to all mapped obstacles or use semantics only as a downstream controller adjustment, rather than encoding semantic risk in the spatial representation. Our framework instead reasons online about obstacle geometry and class-dependent risk by embedding semantic information directly into the Euclidean Signed Distance Field (ESDF). This design encodes semantic risk before control optimization, so high-risk objects exert a larger spatial influence in the safety field while retaining efficient ESDF queries at runtime. Specifically, a foundation-model-based SLAM front end reconstructs dense 3-D geometry from monocular RGB video, while per-frame semantic segmentation provides pixel-level class labels that are fused into the reconstructed geometry. The resulting geometric-semantic representation is then converted into an ESDF, where semantic labels identify safety-relevant regions and impose class-dependent inflation before field computation. The semantic-aware ESDF provides the local distance values and spatial derivatives required by the CBF controller, while class-dependent gains further regulate the controller response. Extensive simulation and hardware experiments demonstrate online operation at 10--20 Hz and semantic-aware safe behavior in both teleoperation and autonomous navigation.

Methodology

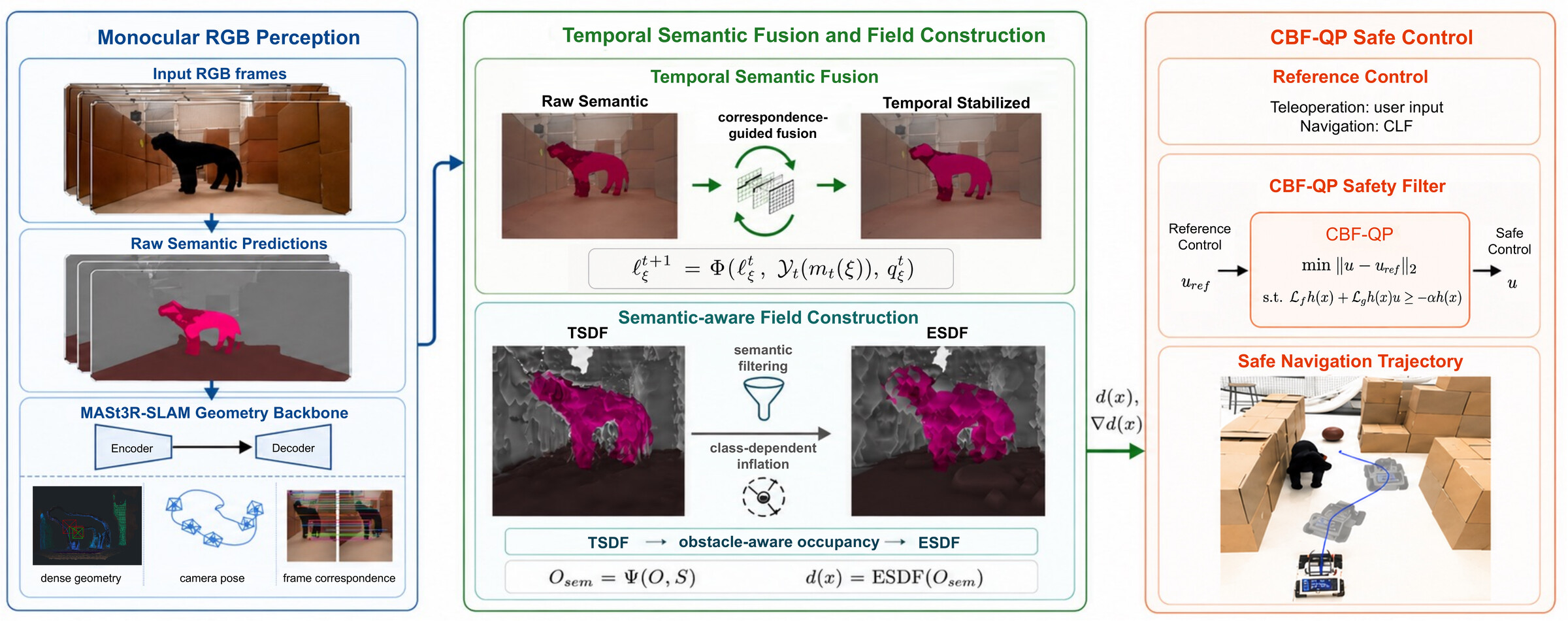

Overview of the proposed online semantic-aware safe control framework
Overview of the proposed online semantic-aware safe control framework. Monocular RGB frames are processed by semantic segmentation and MASt3R-SLAM-based dense geometry estimation. Semantic labels are temporally fused with reconstructed 3D geometry, which is integrated into a local TSDF and converted into obstacle-aware occupancy before ESDF construction. Obstacle filtering and class-dependent inflation encode risk directly into the distance field. The resulting distance and gradient are used by a CBF-QP safety filter to minimally adjust the reference control and generate safe navigation or teleoperation commands.

Simulation Results

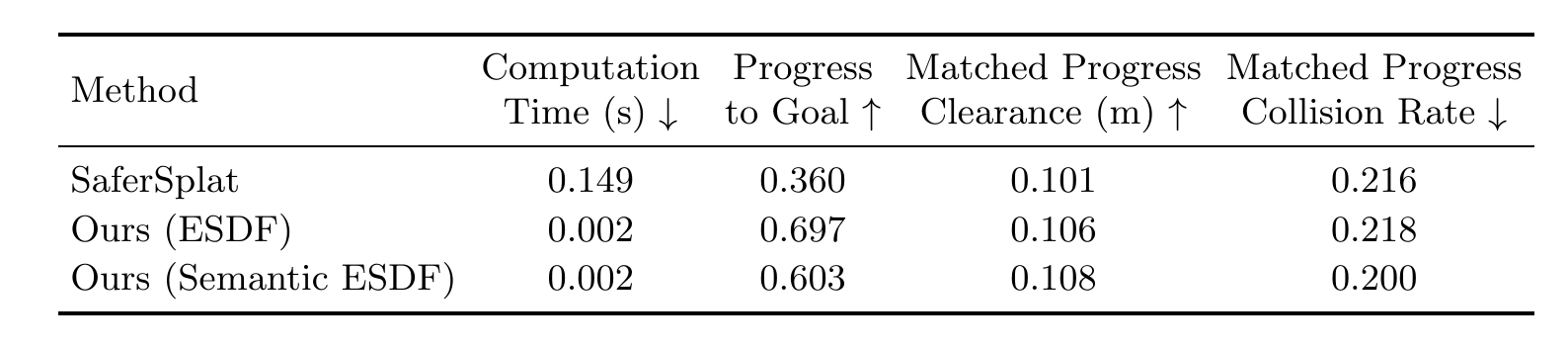

Equal-time comparison on the six-scene benchmark
Table 1. Equal-time comparison on the six-scene benchmark. Matched-progress clearance and collision rate are evaluated only up to the common progress reached by all methods on the same trajectory.

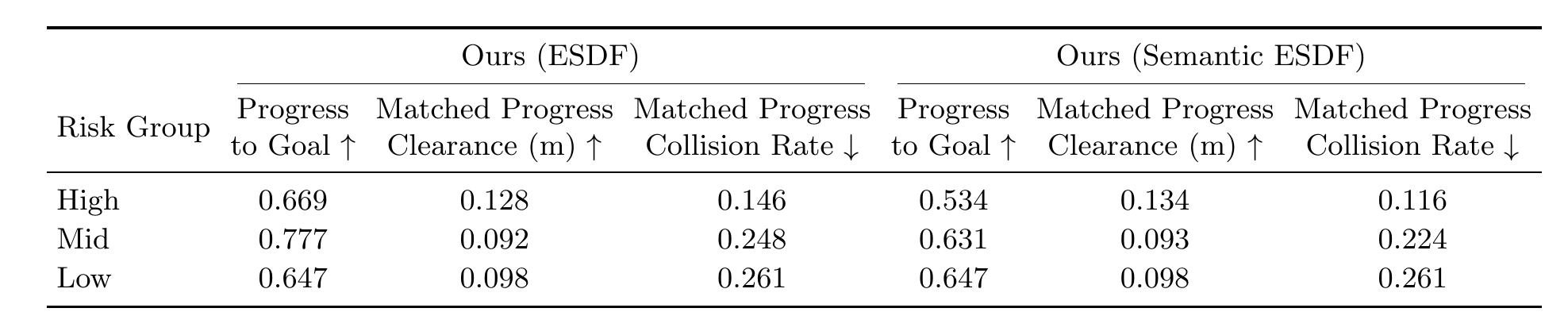

Risk-group ablation on the six-scene benchmark
Table 2. Risk-group ablation on the six-scene benchmark with 486 matched trajectories. Matched progress metrics evaluate safety only up to the common progress reached by both ESDF variants on the same trajectory.

Real-Robot Experiments

We validate the proposed framework in both teleoperation and autonomous navigation scenarios to demonstrate its effectiveness for semantic-aware safe control in an online setting.

Autonomous Navigation

Navigation in a loop

Navigation with unknown obstacle

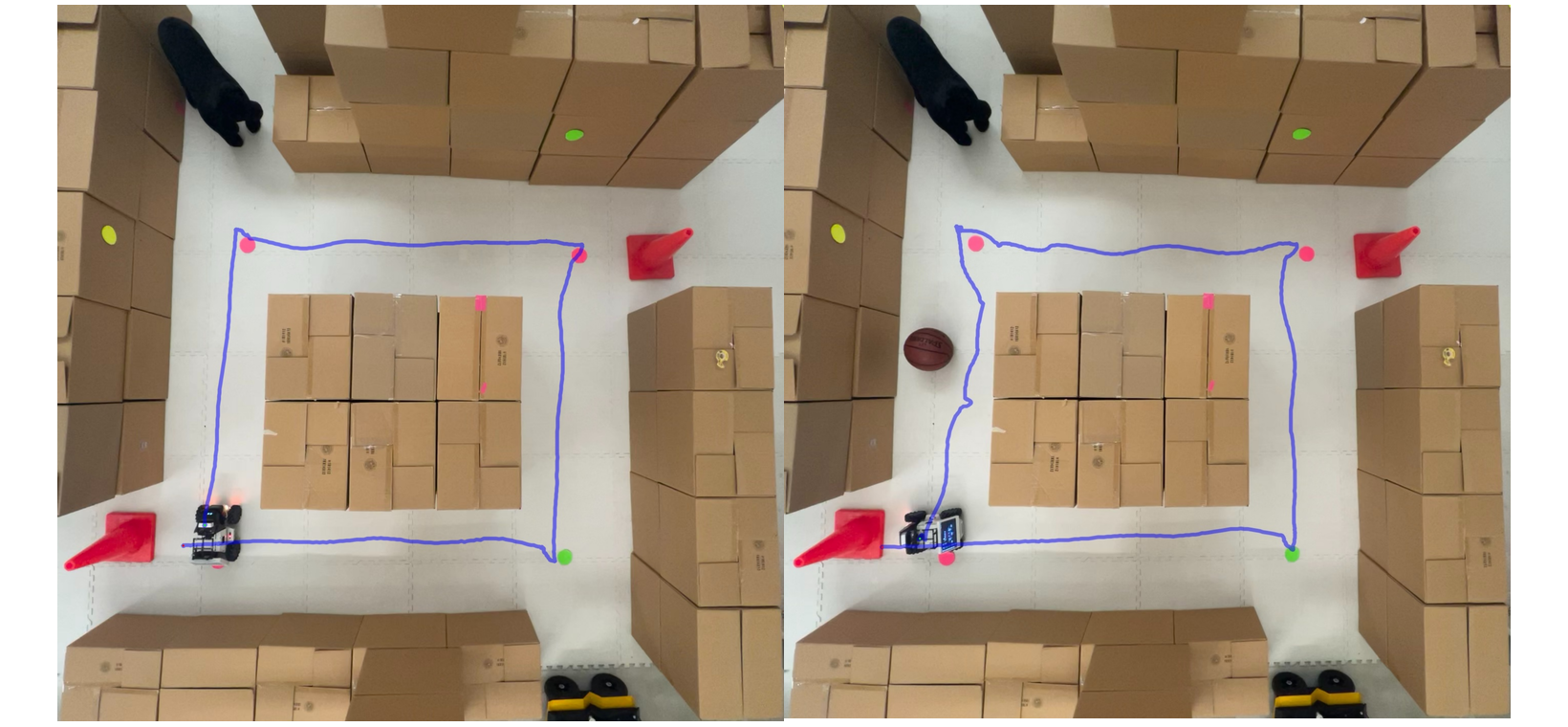

Autonomous navigation trajectories in real-world experiments

Autonomous navigation trajectories in real-world experiments. (a) Navigation in a loop. (b) Navigation with an unknown obstacle introduced during execution.

Teleoperation

Teleoperation with a Ball

Teleoperation with a Dog

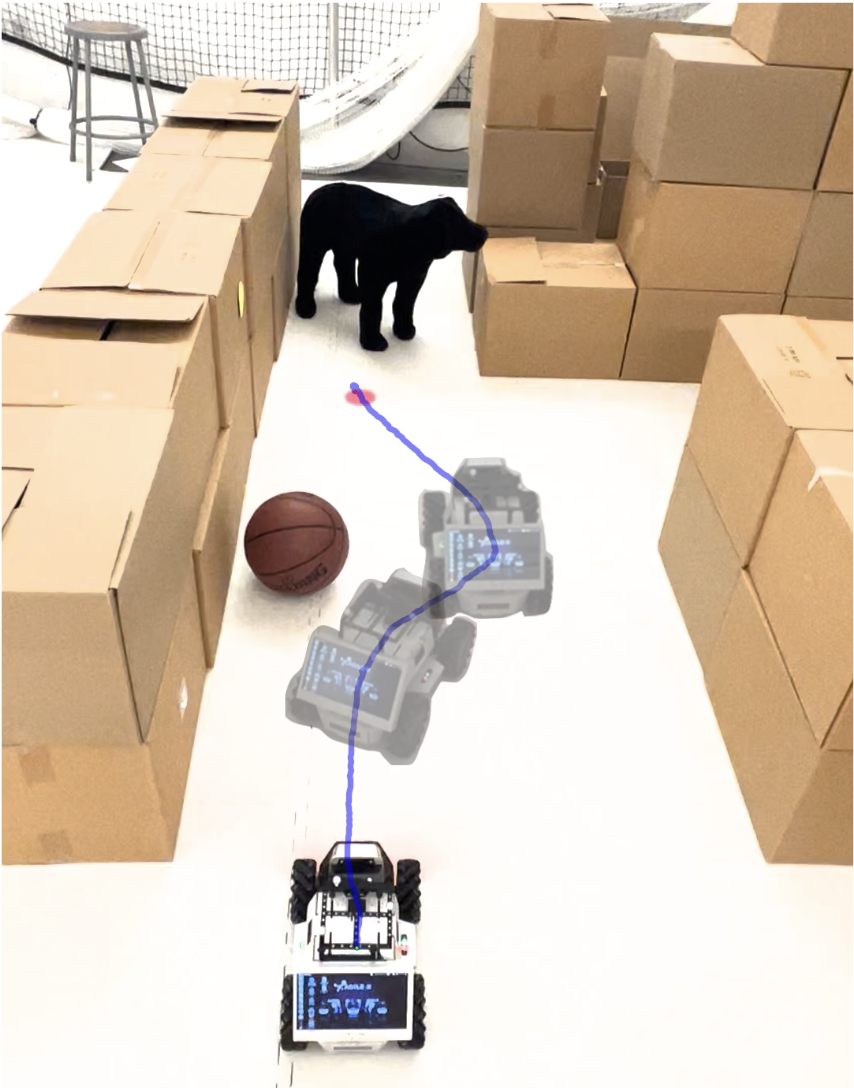

Teleoperation result with a ball

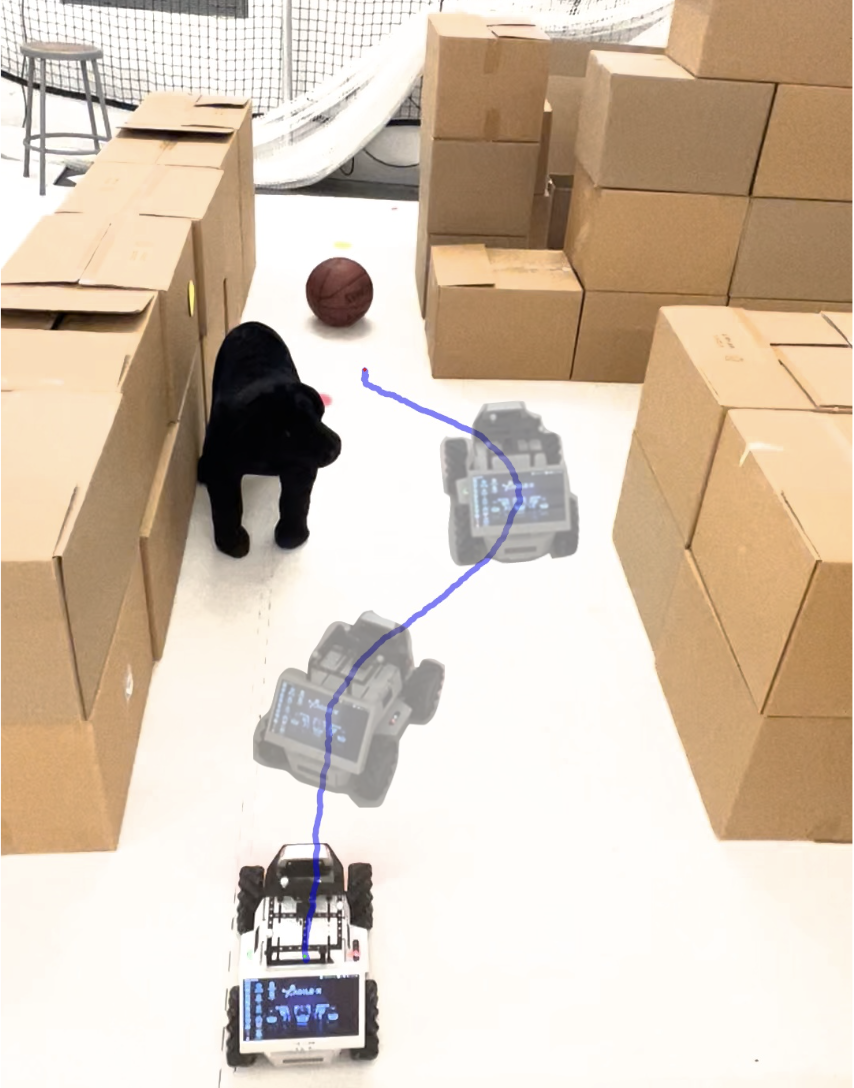

Teleoperation result with a dog

Teleoperated robot trajectories under different obstacle semantics. (a) Low-risk obstacle (ball), where the robot allows closer interaction with minimal intervention. (b) High-risk obstacle (dog), where the safety filter activates earlier and maintains a larger clearance.

BibTeX

@misc{zhang2026embeddingsemanticriskdistance,
  title={Embedding Semantic Risk into Distance Fields and CBFs for Online Monocular Safe Control},
  author={Dawei Zhang and Nuo Chen and Shuo Liu and Roberto Tron and Zhiwen Fan},
  year={2026},
  eprint={2606.01605},
  archivePrefix={arXiv},
  primaryClass={cs.RO},
  url={https://arxiv.org/abs/2606.01605},
}
